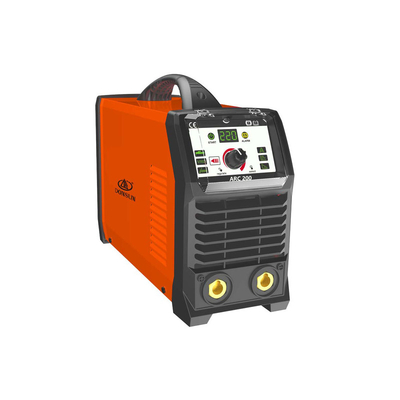

1, Advanced inverter IGBT technology, single phase, portable inverter stick welder, MMA/Lift TIG
2, Easy arc-starting, stable welding current and good welding shape, by the function of anti-stick, arc force, hot start
3, Compact size, light weight and power saving
4, Intelligent protection:Over voltage, low voltage, over heat and over current
5,Automatic compensation for voltage fluctuation, compatible with power generator
6. Vey suitable for the welding of mild steel, mild alloy steel, stainless steel, carbon steel, cast iron, copper, etc
7, Widely used in acid and basic electrode welding
| Model/Parameters | ARC 200 |
| power supply voltage(V) | 1Phase 220V, Wide Voltage: 95~295V |
| Fre.(HZ) | 50/60 |
| Rated Input Power (KW) | MMA: 10.6, TIG:8.3 |
| Rated input current(A) | MMA: 46, TIG 36 |
| Duty Cycle(40℃ 10Min) |
25% 200A 60% 130A |
| No Load Voltage(V) | 70 |
| Welding Current Range(A) | 10~200 |
| Efficiency | ≥80% |
| Net Weight(Kg) | 4.0 |
| Dimensions(mm) | 280x135x220 |
| Electrode Diamerter(mm) | Φ1.6~Φ4.0 |
| Electrode Type | 6013,7018 etc. |
| power factor | 0.65 |
| Insulation Class | H |
| Protection Class | IP23 |
| Cooling | AF |
